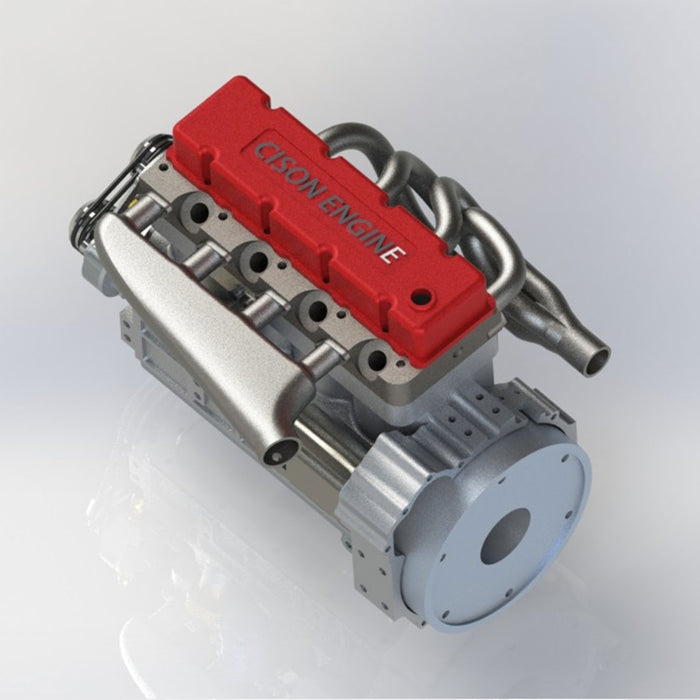

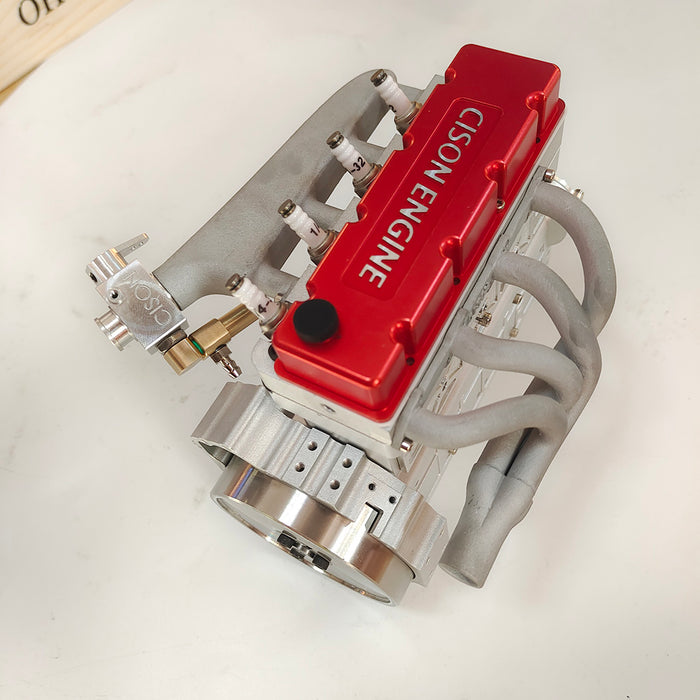

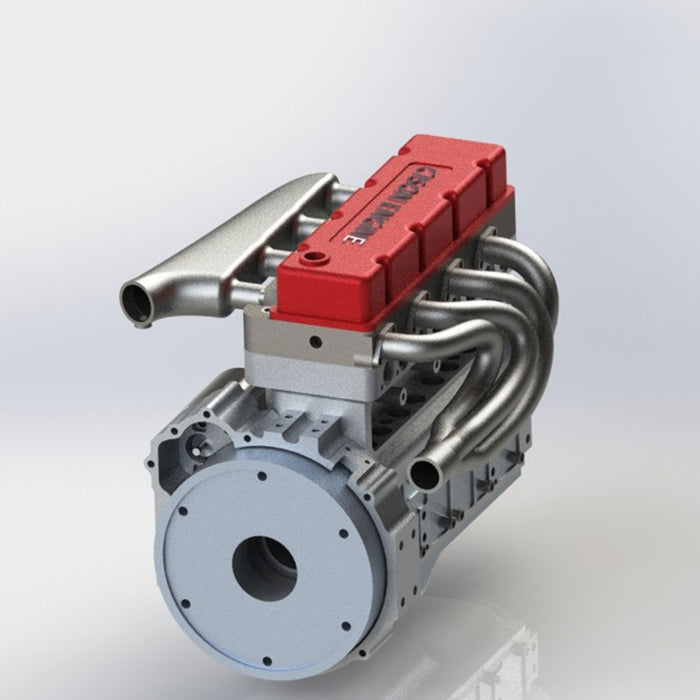

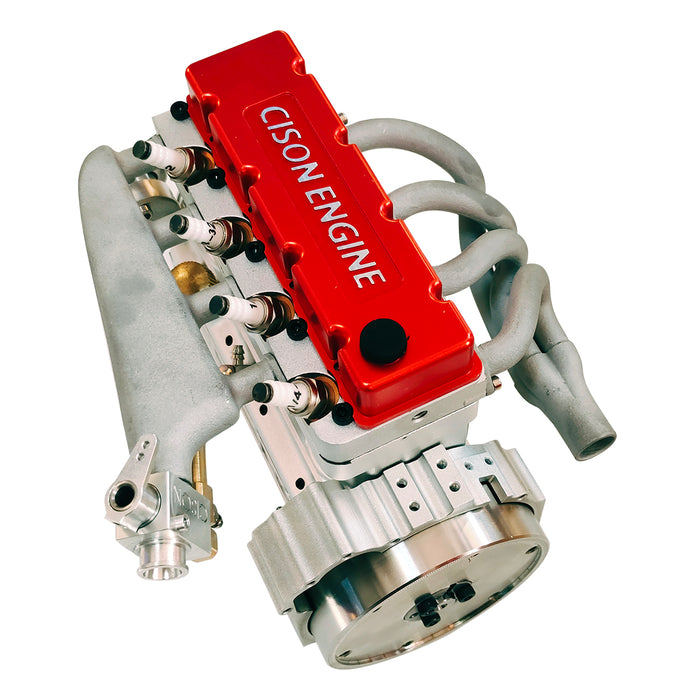

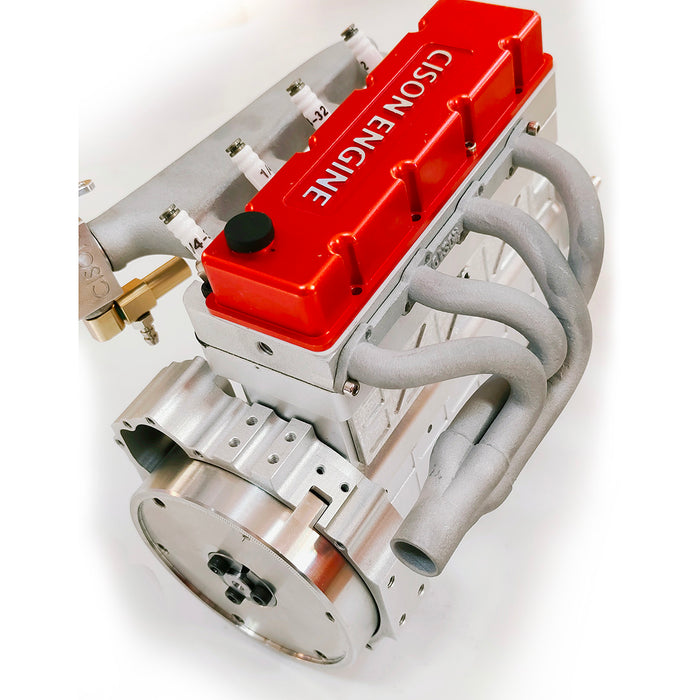

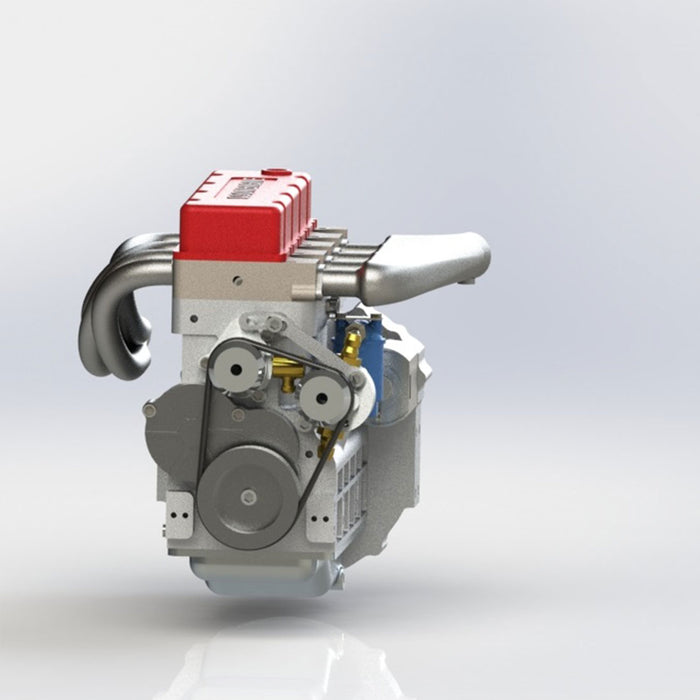

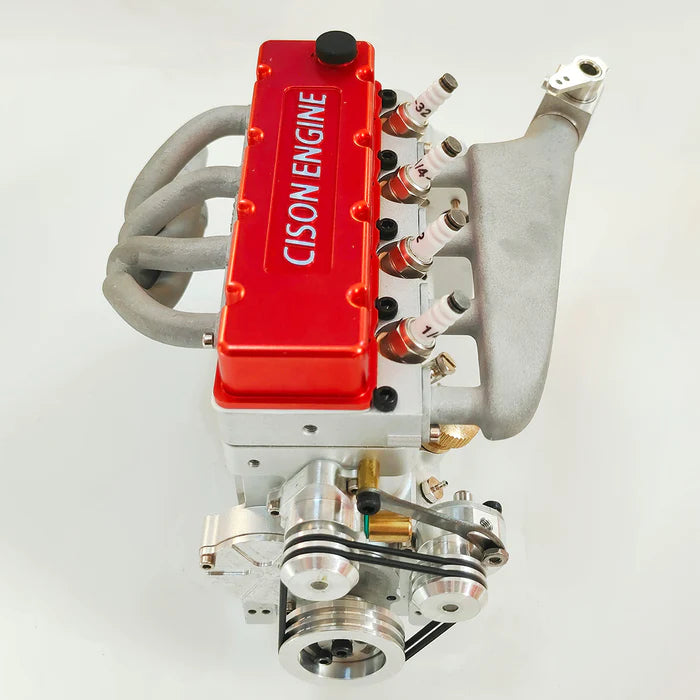

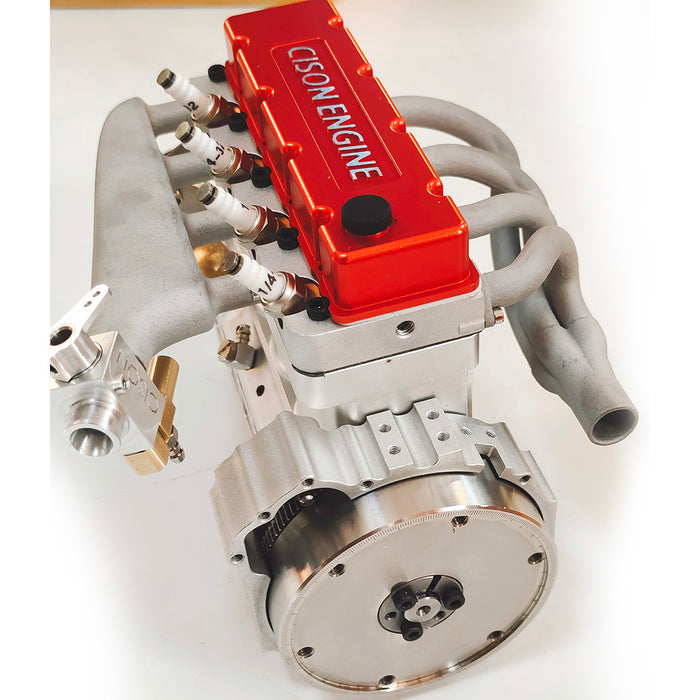

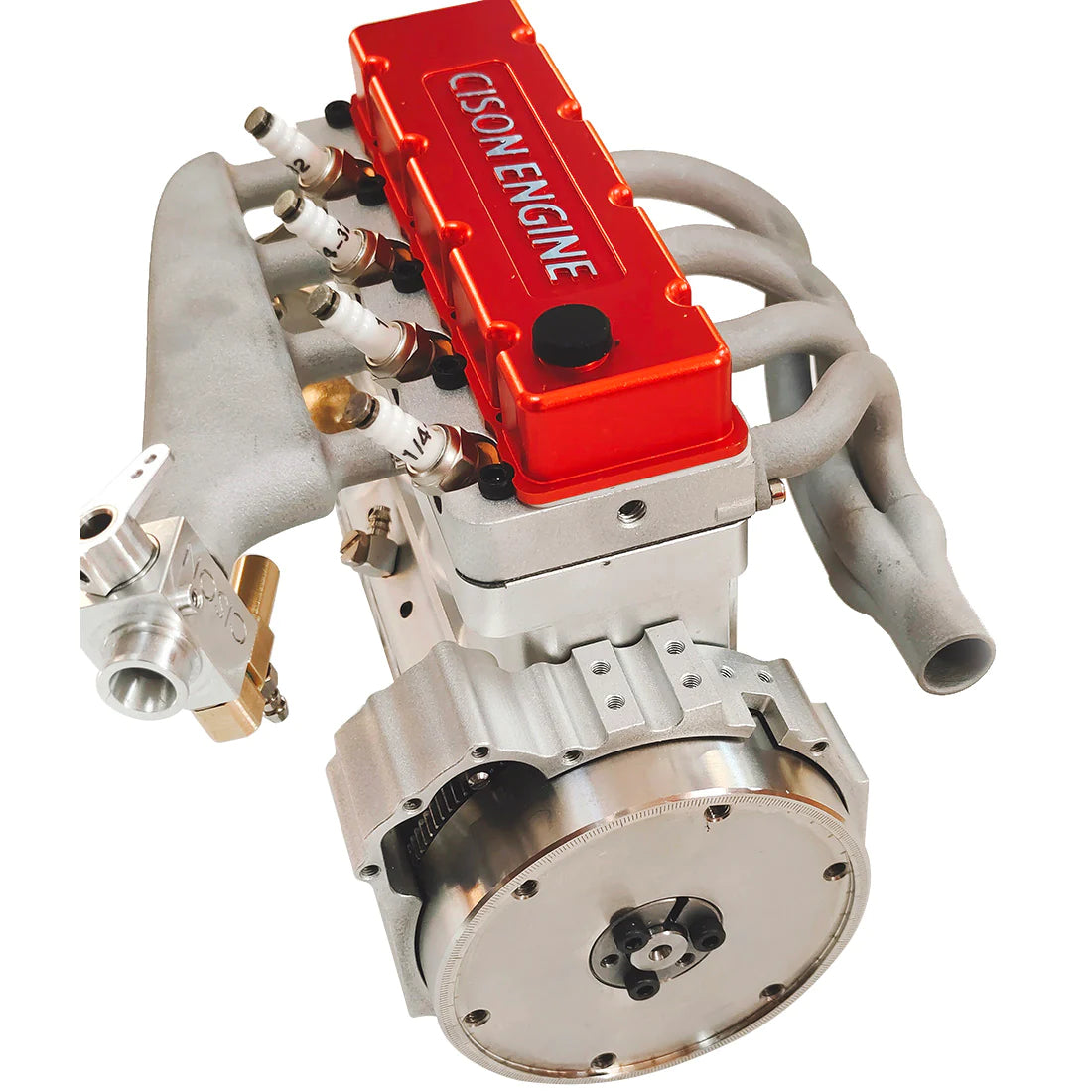

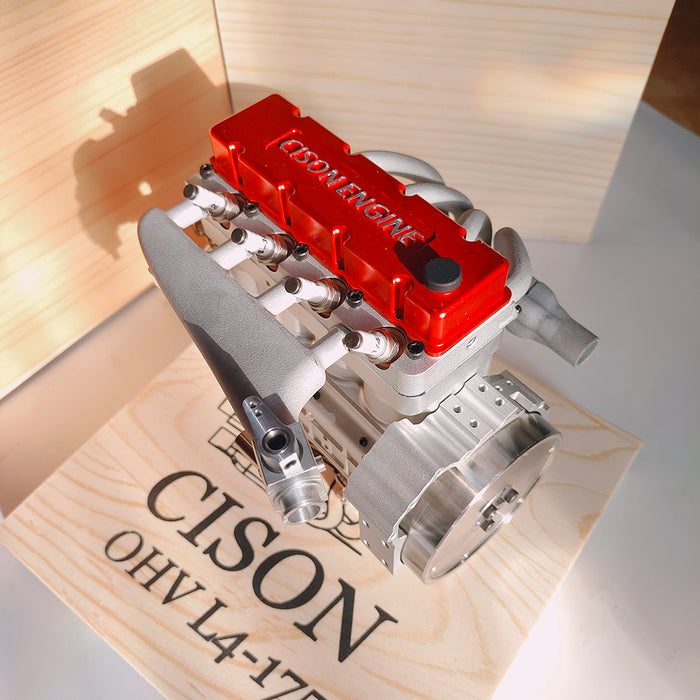

CISON L4-175 4-cylinder 4-stroke 8000 rpm gasoline engine model kit
- The CISON OHV L4 engine is a new design that adds a red sporty element to the exterior and roughs up the crankshaft. The engine features a bionic-design carburetor with an OHV valve train, which provides better power output performance and higher torque output than the flathead design. This makes it ideal for use with RC off-road vehicles, tractor-trailers and other vehicles.

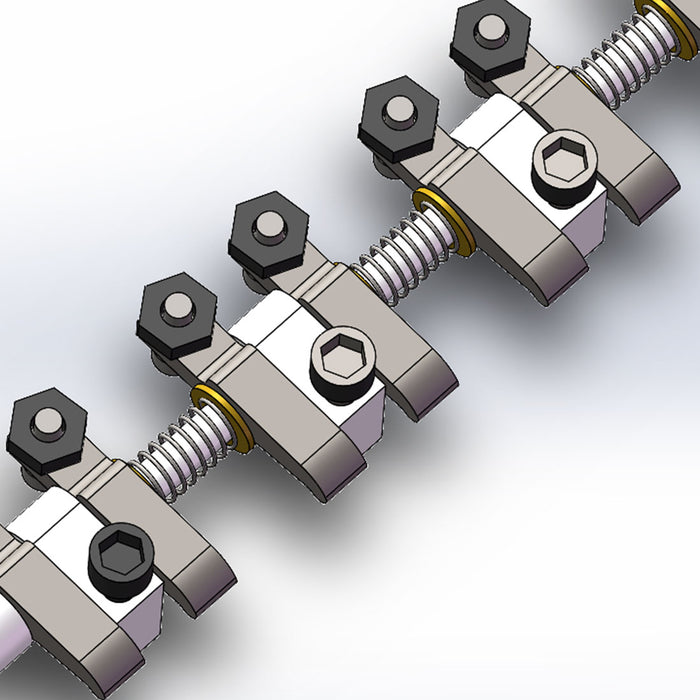

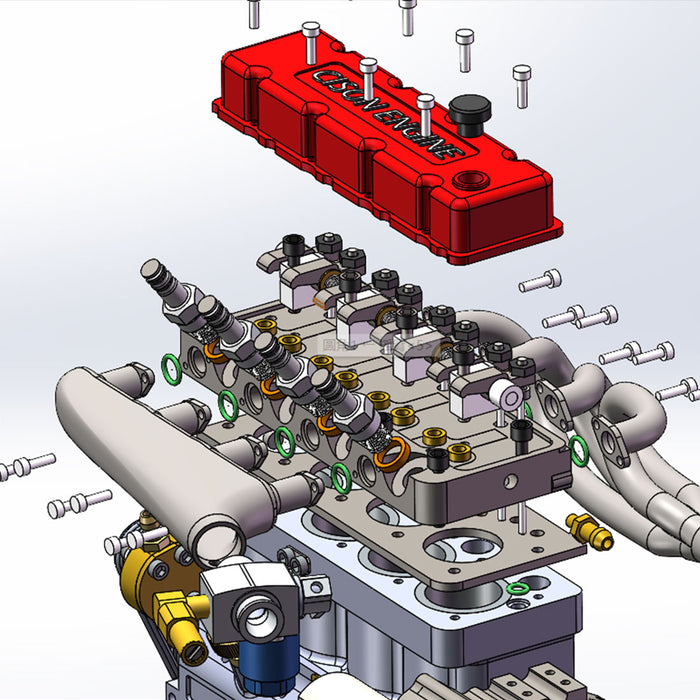

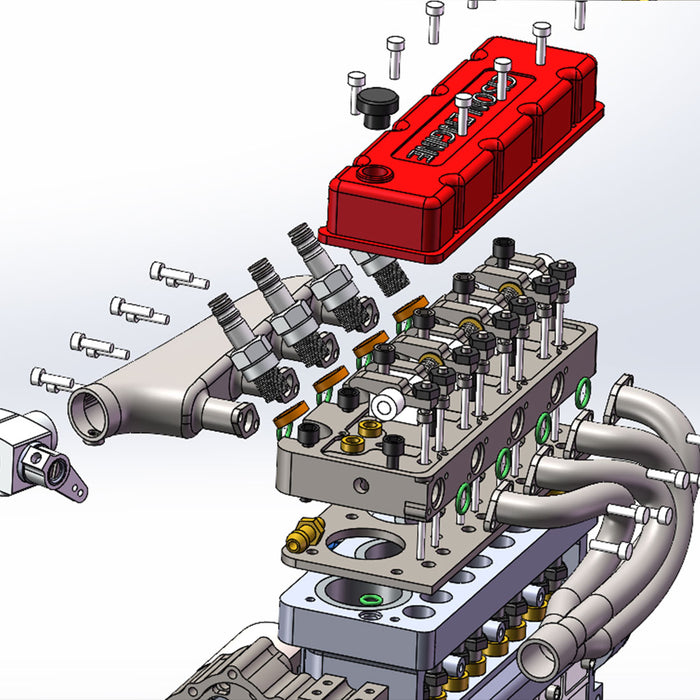

- The OHV miniature model engine L4-175 has a unique, miniature and compact appearance along with a large displacement. It adopts OHV valve train with long stroke and high output torque.

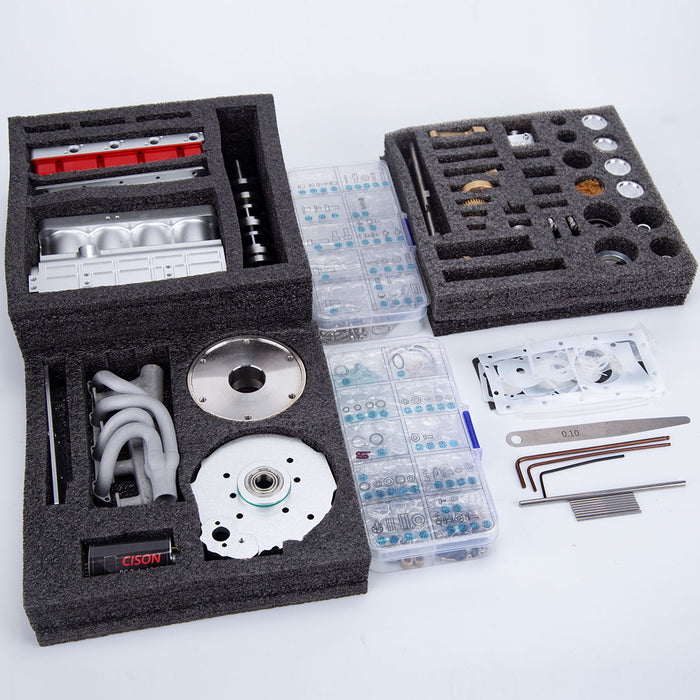

- Building your own engine becomes possible with the L4 engine kit that offers hundreds of metal parts so you can start a great and challenging project and enter the world of miniature mechanical engineering. Two versions are offered to choose from: the kit and the assembled version. If you choose the kit version, you can build your own L4 engine by hand; if you choose the assembled version, you just need to prepare it for operation.
- The CISON L4 engine features responsive capabilities. The intake and exhaust pipes feature printed, integrated metal and stainless steel construction, plus a bionically designed carburetor for easy adjustment and more responsive throttle, as well as a deeper, more powerful engine sound.
- The engine boasts long-lasting performance. The independent lubrication system with micro oil filter and external oil pump provides excellent lubrication. The engine uses water circulation cooling technology to extend its operating life.

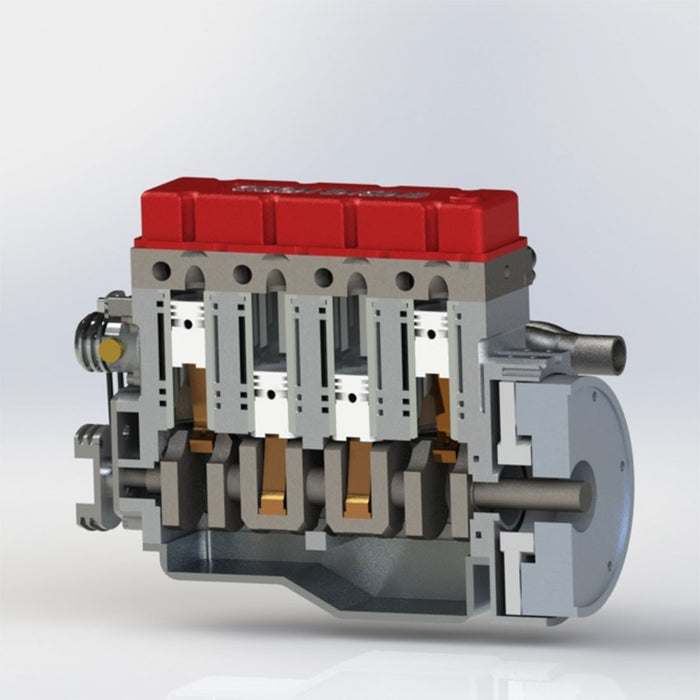

- The manufacturing process is very complex. The engine body is CNC precision machined from aluminum, with special bimetallic cast iron piston rings and high precision stiffened cylinder liners. The crankshaft is stiffened in its entirety and sandblasted and oxidized on the surface to reveal a deep aesthetic and textured look.
- The ignition system is convenient and easy to use. The CDI ignition for L4 engine is compact in size and has super anti-interference performance to ensure stable ignition, which is more suitable for users who use remote control electronic devices.
- This engine is compatible with RC models and is especially suitable for low torque requirements such as 1/8 and 1/14 tracked vehicles, off-road vehicles and tractor models. Its lightweight design makes it ideal for these models.
- The CISON L4 engine also makes a perfect collector's item for mechanics enthusiasts, model engine enthusiasts and collectors. It is the engine of choice for RC off-road GP models and can be given as a high-end personalized gift to family and friends.
- Product Details:
.Material: Metal
.Model: L4175-OHV
.Form: Finished Version
.Type: Gasoline Interal Combustion Engine
.Valve Mechanism: OHV
.Displacement: 17.5CC
.Cylinder: L4
.Stroke: Four Strokes
.Cylinder Diameter: 16.7mm
.Stroke: 14mm
.RPM: 1500-8000rpm
.Power: About 2.5ps
.Cooling Mode: Water Cooling
..Lubrication Method: Independent Lubrication System
.Starting Mode: Electronic Starting
.Ignition Method: CDI Igniter for CISON L4 Engine (Not Included)
.Spark Plug Type: 1/4-32 Thread ME8 Spark Plug (Not Included)
.Starting Power: 6-14V, 12V Li battery is recommended (Not Included)
.Fuel Type: 92# Gasoline and Above
.Engine Oil Type: 2T Engine Oil, 10W50 Engine Oil is recommended
.Cylinder Dimensions: 96*43mm
.Product Dimensions: 13.5 x 10.24 x 10.5cm
.Product Weight: 1300g
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 2200g

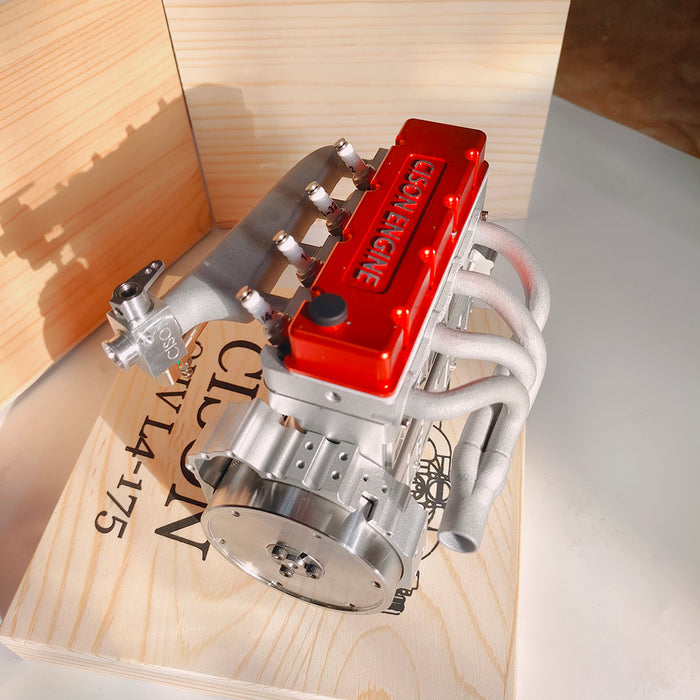

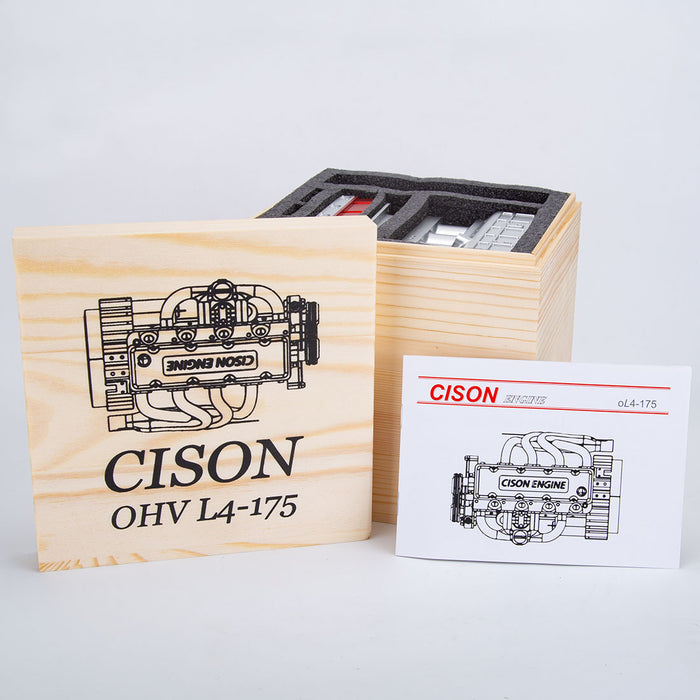

.Packing: Wooden/ Bamboo Box
